PTMPO PRODUCTS

Description

HHTindustrial PTMPO leverages the proven MIL spec 26482 connector system to provide an environmental seal and mechanical protection for an MPO style connector.  The metal bayonet connector system is quick to deploy, requiring only ¼ turn.  It is a metal construction and has a positive latching system (both audible and visual).

HHTPTMPO connectors are exceptionally suited for WiMax, wireless, and base station applications.  The PTMPO is capable of performing in even the toughest environments.

Features:

• Complies to applicable sections of MIL 26482
• Complies to TIA/EIA 604-5 and IEC61754-7
• Meets IP67 specifications
• Available in single mode and multimode versions.
• Fiber counts 4, 8, 12, 24, or 48.
• Excellent vibration characteristics
• Metal jam nut receptacle accepts a standard MPO connector

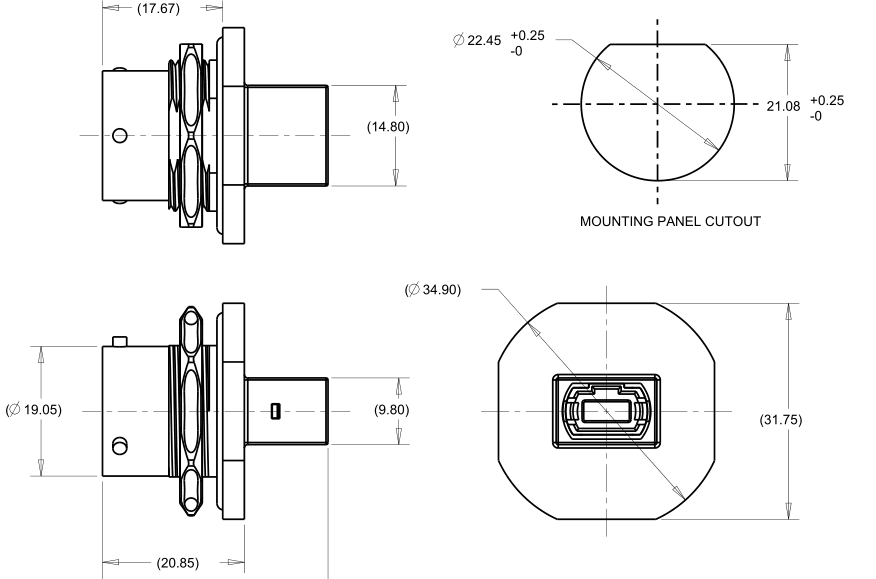

Drawing:

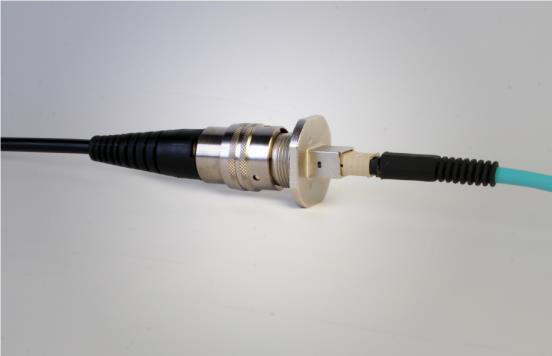

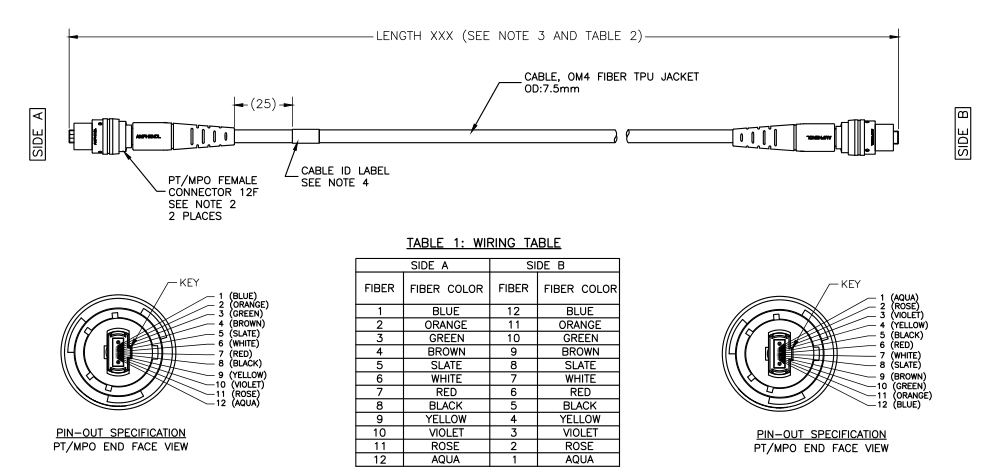

Jumper:

Socket:
